Yamaha XT225 and a compelling six

Sunday shed wrap

September 28, 2025, by Guy 'Guido' Allen

yamaha XT225 and Honda Sl230

A little while back we reported on buying two small trail bikes: namely a 1999 Yamaha XT225 (aka XT250 or Serow), plus a 2000 Honda SL230.

We recently managed to get the Yamaha on the road, with club plates in Vic. That means 45 days of use for $80 a year – double that if you need 90. It's a fantastic scheme and I'm sure it has legitimised a lot of vehicles that were otherwise running around with dodgy plates.

The Honda will go though a similar process in November, when it turns 25 years and one month old – the required time.

This pair is probably typical of a lot of small-bore trail bikes, in that they were originally bought by optimists who used them for a mix of transport and leisure. Then they were sold and ended up as playthings for the nearest teenagers – a son in the case of the Yamaha, and daughters for the Honda.

Which is great. My own kids grew up with motorcycles and I believe we all got a lot out of the experience. Plus, motorcycles are far easier to fund and manage than horses – I know, I've been there.

Yamaha
              xt225

The impact however is that everyone is busy and the bike – which is now a non-essential toy – is a long way down the pecking order when it comes to attention. As mate Don K says, it's entirely possible the oil hasn't been changed for years – or ever by the second owner.

Yamaha xt225

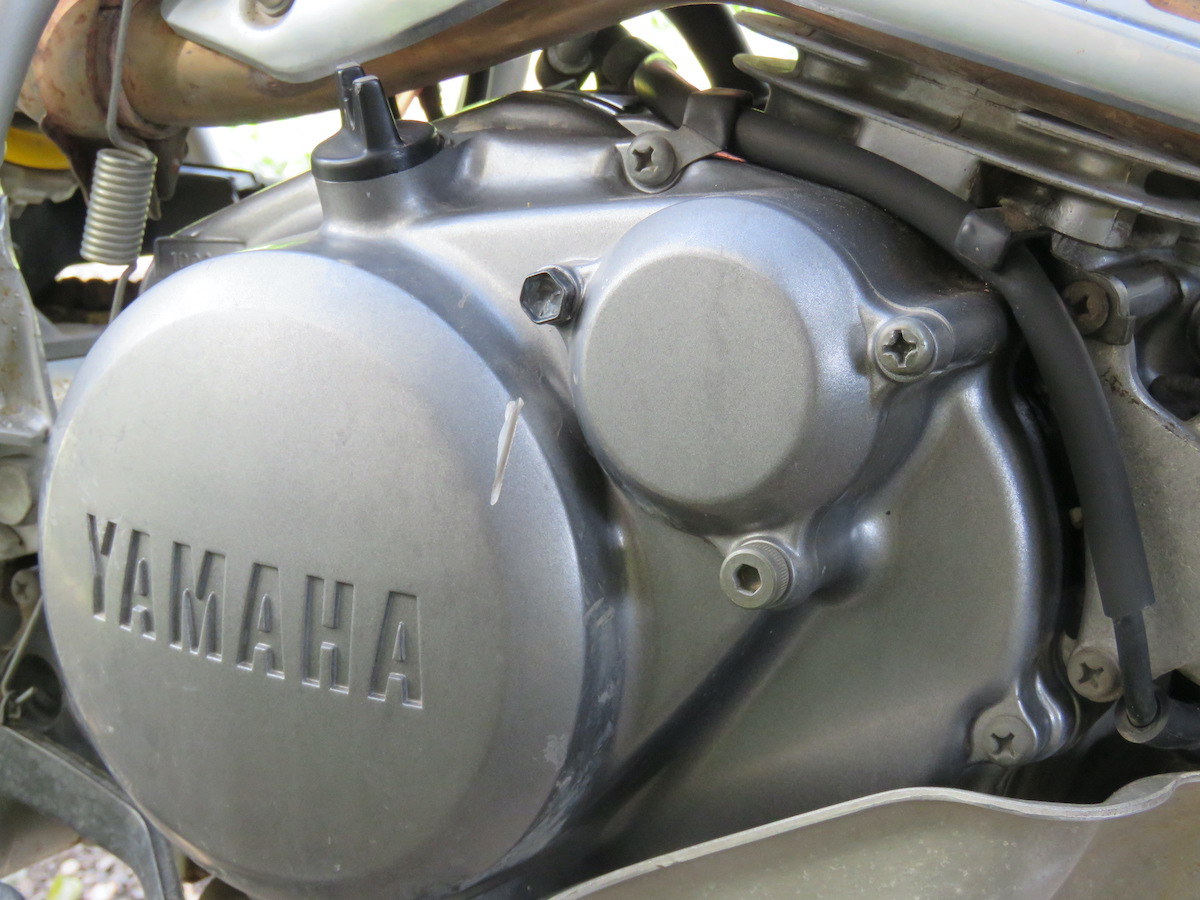

Speaking of Don, he owns a couple of these things and is arguably the world's fussiest shed mechanic. He has generously promised me a little session going over the machine, while we do an oil and filter change. Oh, and fix the mish-mash of bolts and screws on the oil filter cover, which I know drives him nuts. And now me...

However I had to change the oil before then. I figure it's a way of flushing the system by the time I get to Don. My main concern is the oil capacity is just one litre – which means it is working hard.

And this is when the first problem arose. To get to the drain plug, you need to remove the sump guard. That is simplicity itself: undo the single 10mm bolt at the front and slide the guard forward. Good theory.

In this case the allegedly captive and inaccessible nut had worked loose. So the bolt could not be released. Until I got out the angle grinder and set if free. The problem now is whether to drill out what remains of the bolt and find a way in behind the lower front frame bracket to set up a new fastener. On my current list of priorities, it's just below starting a rotary hoe racing league, which is just below belt-sanding my head.

Yamaha xt225

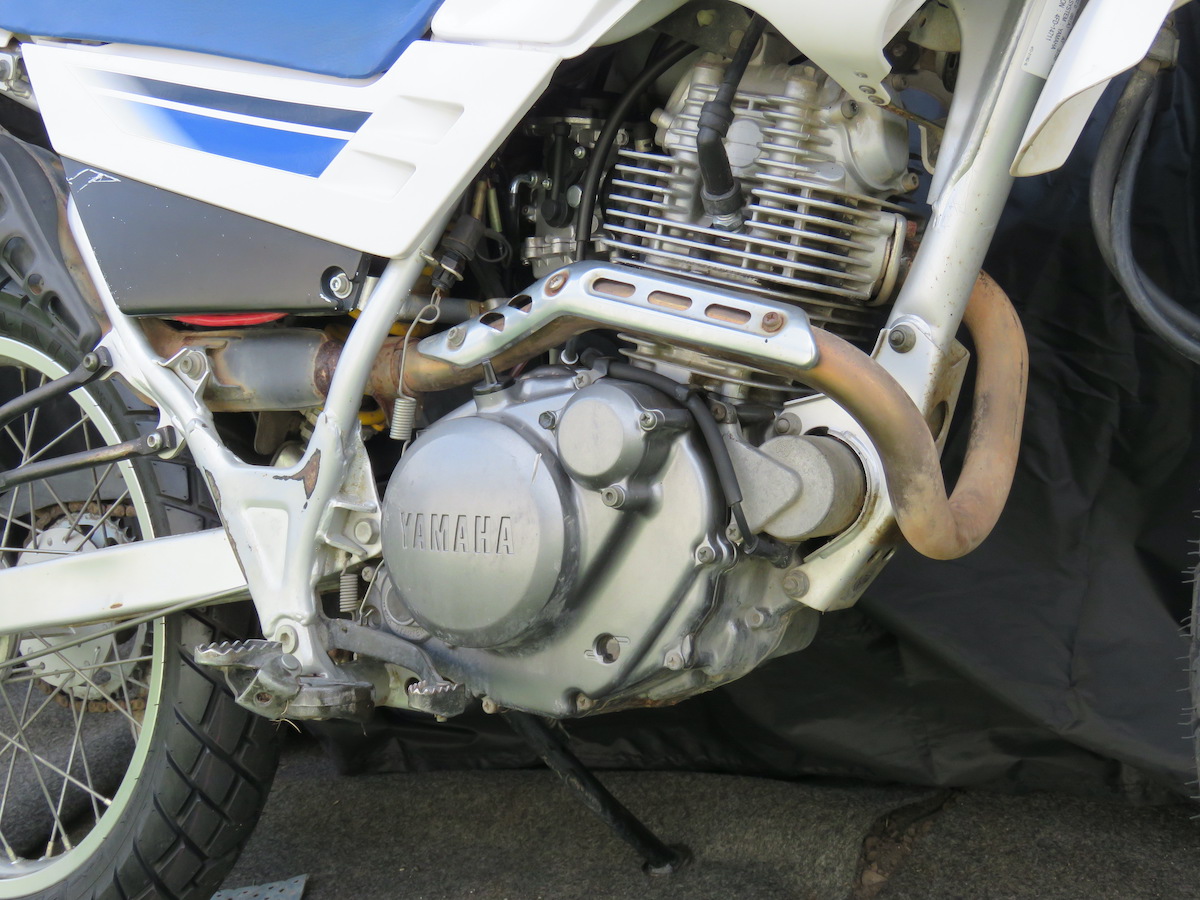

You know what? I never liked that sump guard. The truth is I'm not one of those riders who leaps over logs or gets into situations where a sump guard would be of any value. I've done a fair bit of gentle trail-riding in Australia and Vietnam over the years – and I mean trails rather than motocross – experiences which suggest Muggins needs a sump guard about as much as he needs an aqualung. So I've ditched it.

The one on the Honda will most likely meet a similar fate.

I suspect the sump guard was there to perform a marketing-related role to clean up the looks around the front lower frame and – most significantly – make the bike look 'tough' as a pukka off-roader, which would influence any review.

Unless you really want to race or enduro the thing (which it will do in a modest way), the sump guard is about as useful as an ashtray.

Yamaha xt225

Anyway, we're getting off-topic. Today's mission was to take a closer look at the Yamaha, which rode nicely until you went past half-throttle, at which point it would start to misfire and generally act unhappy. I had been assured by someone who should know (long story) the most likely culprit was the carburettor, and was blind-sided by that advice.

Yamaha
              xt225

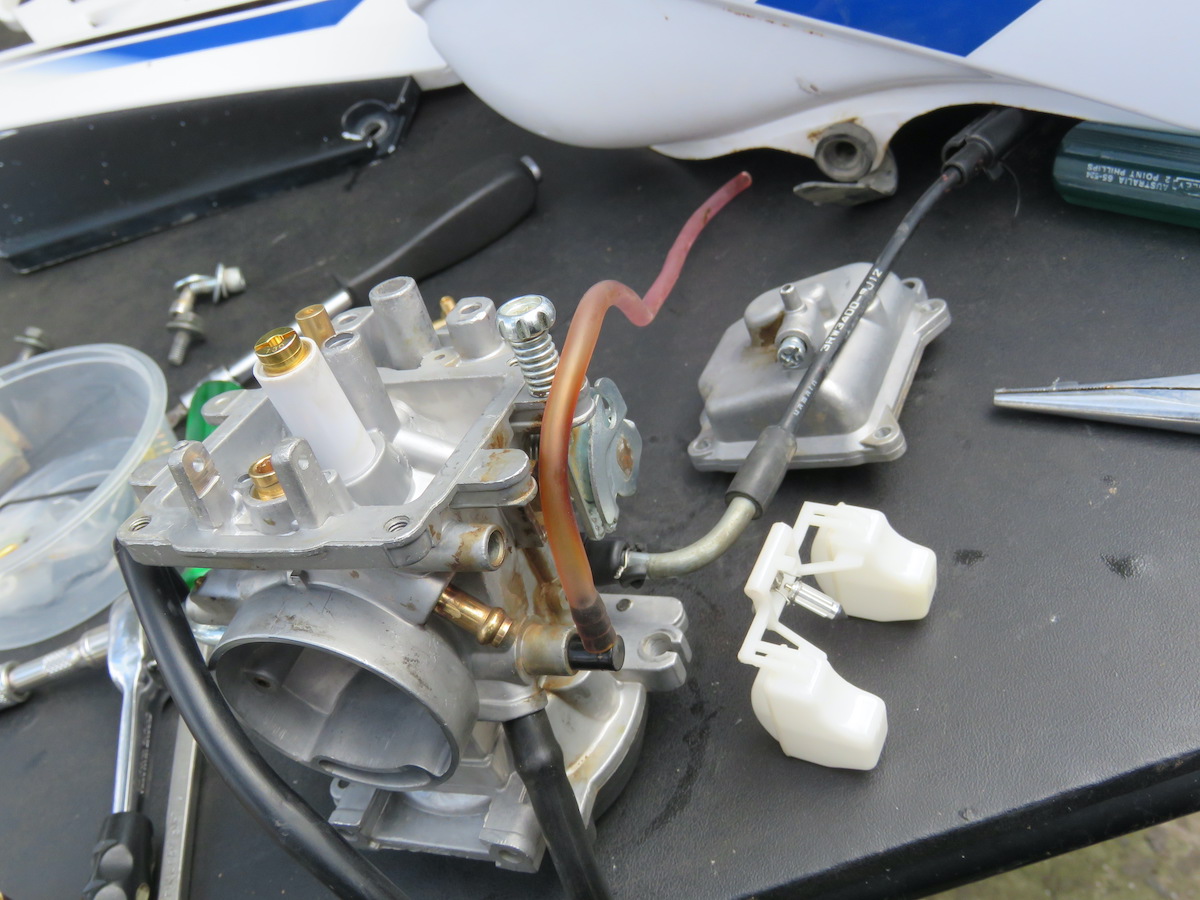

In any case, it did no harm. I've now been through the carburettor (a flatslide CV Mikuni) with new main jet, needle, float needle, checked the float levels – you get the idea.

The good news was that, despite the bike looking like it had been soaked in mud for a month when I first collected it, the carburettor internals were pretty good.

By the way, I checked the fuel flow and it was fine.

Yamaha xt225

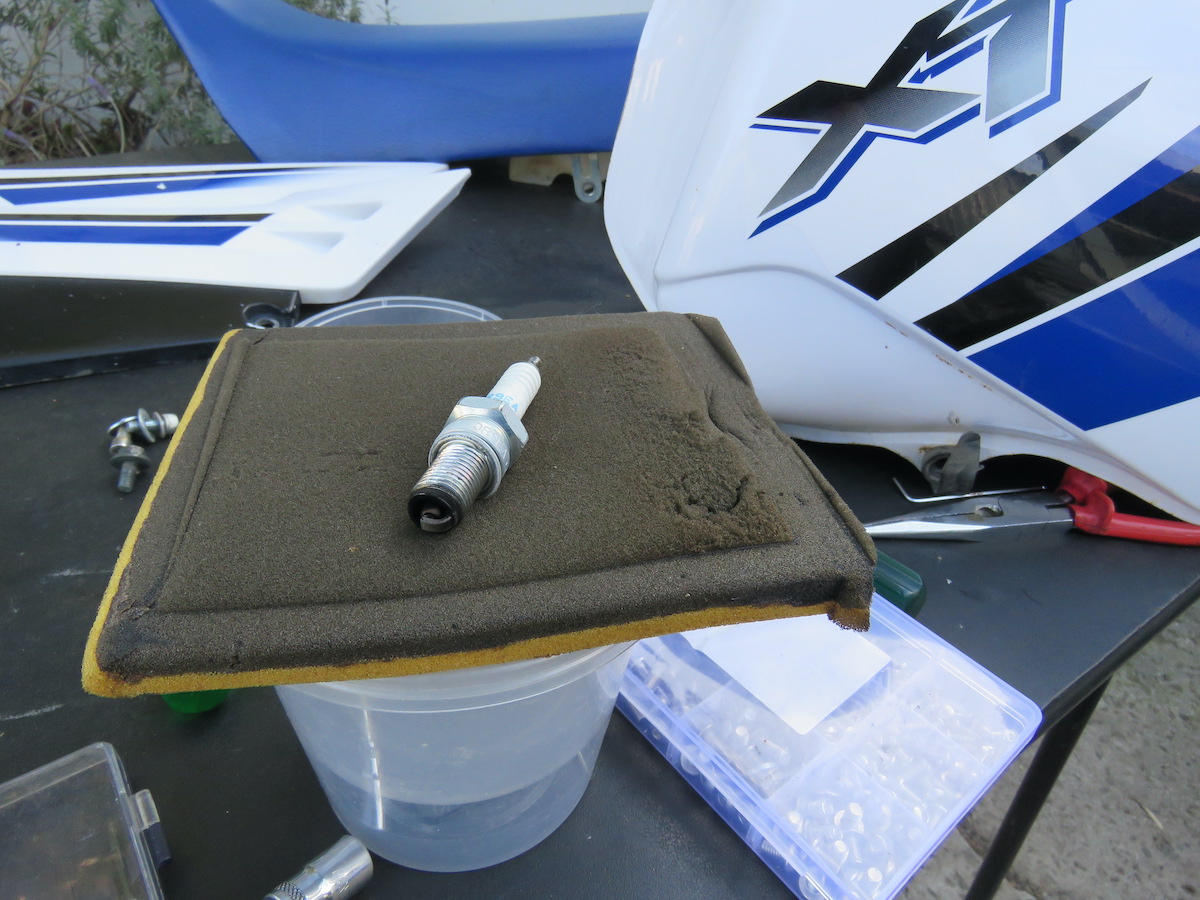

The next ports of call should have been my first: which were the spark plug and air filter. The former was the wrong heat range (NGK 9 instead of 8 – and you could argue it should be 7), while the filter was, to use the correct technical term, stuffed.

A new filter is on order and, for the time being, I rigged up a temporary replacement with some cloth folded over the filter frame. Also, the throttle cable is starting to unwind – so we have one on backorder, which will take about a month.

Does the bike run? Yep – surprisingly well. Full throttle is now exactly what you'd expect, plus it idles happily and generally behaves. If I was being ultra-critical, there is just a hint of hesitation at low revs and throttle, which Don suggests might be a minor manifold leak.

It's likely this has surfaced now the bike is otherwise running properly, instead of being hobbled by a stuffed filter and the wrong spark plug. I'll investigate when the new bits arrive.

If you own an XT225, and want to work on the carburettor, you will find these YouTube links useful:
Removing the carburettor;
Working on it.

Yamaha
              xt225

Along the way we changed the tyres. Like many other things on this machine, they were neglected. Though a long way from worn out, they were over a decade old and timed out. We're now running fresh Pirelli Scorpions that reflect the intended use of back roads and easy trails.

Meanwhile, our modest exercise yard menu this weekend had a bit of a Honda theme: 2001 GL1500CF Valkyrie Interstate, 1975 GL1000 Gold Wing and 1982 CBX1000C. Oh, and the lovely 1975 BMW R75/6.

Honda CBX1000C

Of the four, the CBX1000 six is the one that really has my attention at the moment. I own faster, better-engineered, better-handling and arguably better-looking motorcycles. But there is something about this angry-sounding monster that is compelling.

It's a subject for another day and a very different style of feature.

In the meantime you can see a brief story on the CBX here;

And the other machines which have passed through the shed, here.


***
