Ducati 400 F3 (by Ian Falloon, Mar 2022) Middleweight
race replica
One of the more surprising things that
happened at Ducati during the early 1980s was their
reluctance to produce a street version of the
all-conquering 600cc TT2. By 1984 Tony Rutter had won four world
championships, and already the factory was campaigning
the 750cc TT1 but it wasn’t until 1985 that the
production 750 F1 appeared. This evolved into a second
series for 1986 and was joined by smaller capacity 350
and 400 F3s. In the early to
mid-1980s Ducati’s production was sporadic and
several specific models were produced for the
Japanese market, at the time the largest
market for Ducati. These models were primarily
the 400 F3, this ostensibly identical to the
Italian specification 350 F3. The 350 F3 grew out of the 350 TL and
SL Pantah that were designed for a lower tax rate on
smaller capacity motorcycles and available in Italy
between 1982 and 1984. The engine was basically a downsized
500 SL Pantah, the 350 with a 66x51mm bore and stroke
and the 400 with 70.5mm 10.4:1 pistons. Included valve
angle was still 60-degrees and the small valves were
33.5mm for the inlet and 30.5mm for the exhaust. Carburetion was by a pair of Dell’Orto
PHF 30M carburetors without air cleaners. The 400 F3
also featured an oil cooler, not the full-flow 1986 750
F1 version, but the partial cooling of the 1985 F1. The gearbox was five-speed and the wet
clutch cable operated. Claimed power for both the 350
and 400 was 42 hp at 9700 rpm. The 350 and 400 F3
red-painted frame was shared with that of the 1986 750
F1, as were many of the chassis components. This included the white-faced Veglia
instruments and all the controls. The biggest difference
between the 750 and its smaller brothers was in the
suspension. Non-adjustable 38mm Marzocchi forks were
fitted to 400, these having red-painted fork legs and
triple clamps. The brakes were floating 280mm cast-iron
front and rear, with Brembo P2F08N calipers. Also shared with the 1986 750 F1 was
the early style front mudguard, solo seat, and 18-litre
steel F1 fuel tank. Two series of 400 F3 were produced
in 1986 and this is one of the second series. Visually
the easiest way to tell the two apart was the lack of
elephant logos on the fairing on the later bike, and a

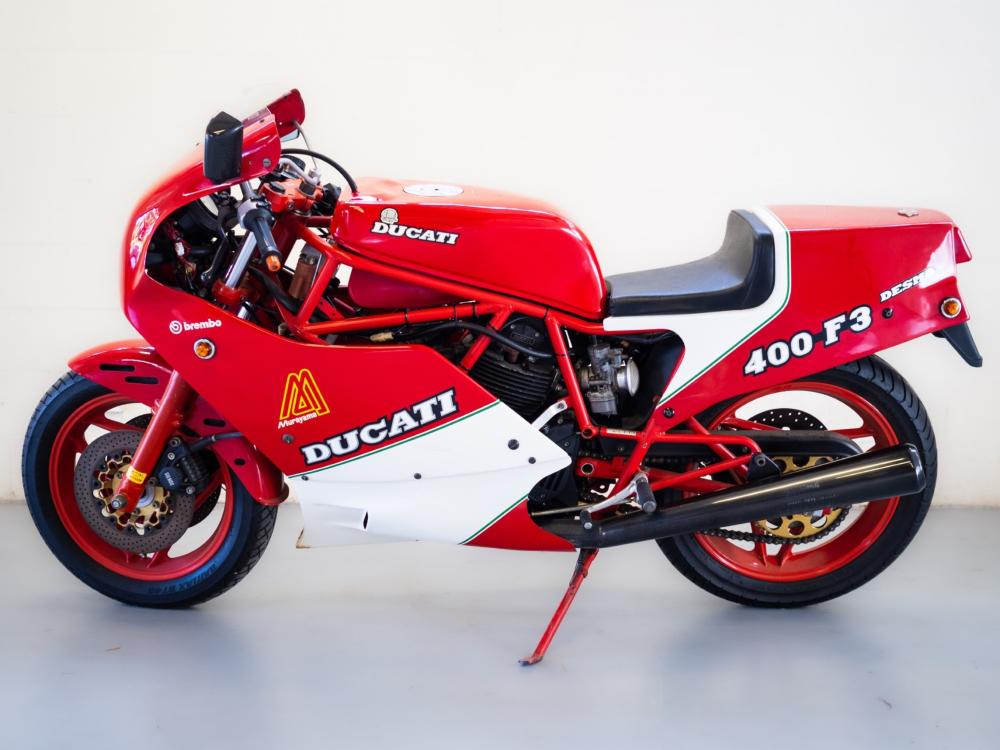

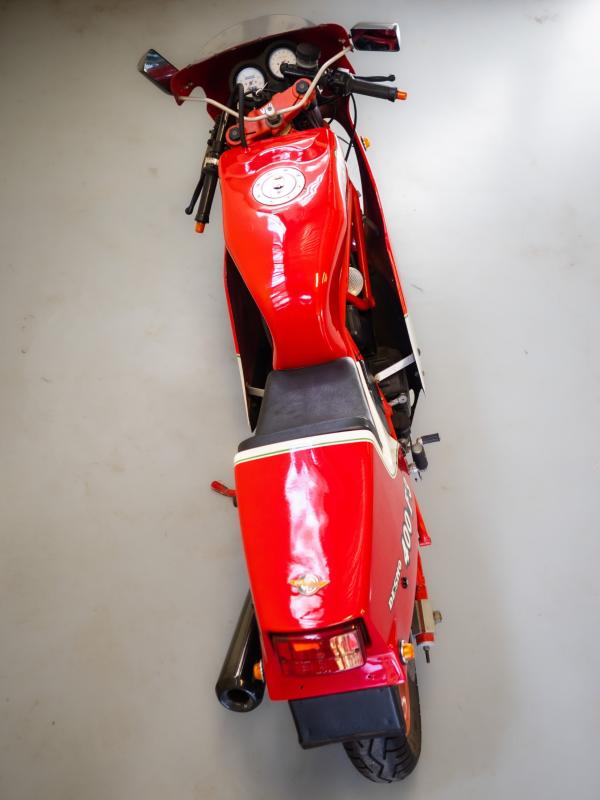

sidestand instead of a centrestand. (The example shown here is a 1986
model, being offered for
auction by Donington from July 3, 2022.) ------------------------------------------------- Produced by AllMoto abn 61 400 694 722 |
